Outdoor screen case in Türkiye
Türkiye outdoor P10 installation completed, 208.896 square meters
Learn More
Shenzhen Topstar Electronic Co., Ltd
Hs Series- Outdoor SMD LED Display
Hs Series- Outdoor SMD LED Display
Diamond Collection
Diamond Collection high brightness, good waterproof effect, hightemperature durability; thin and light cabinet.
The thin panel

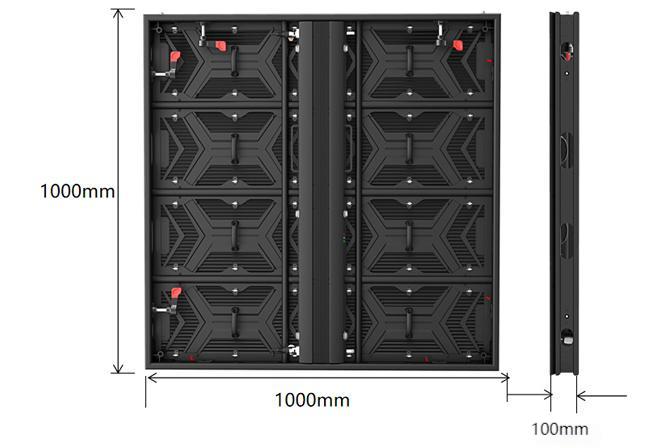

The standard cabinet size is 1,000x1,000mm and the depth is only 100mm.
The thin panel can minimize installation space and also save transportationcosts .

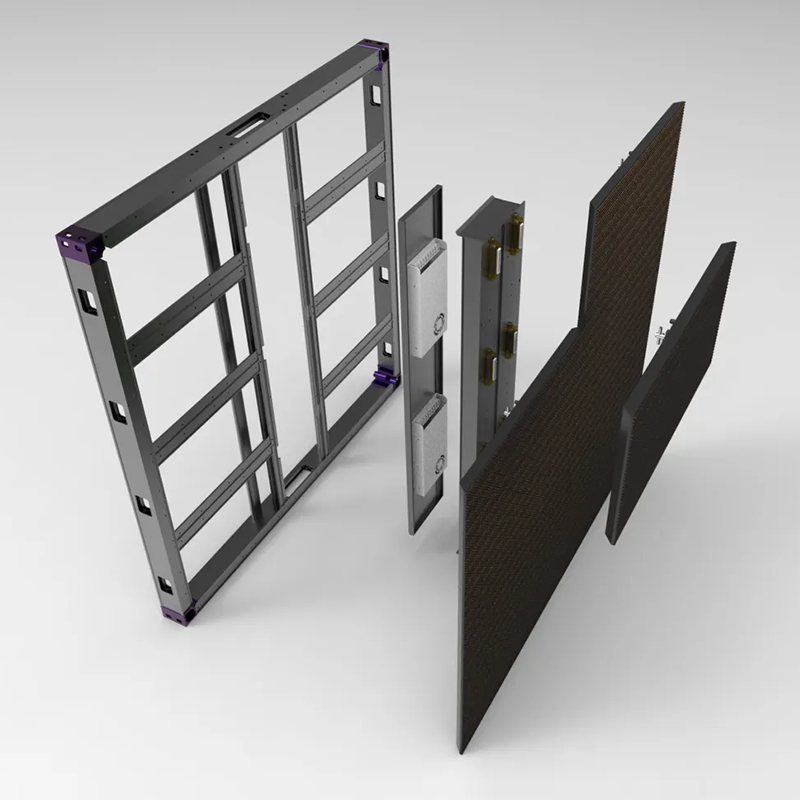

Detachable power box
The receiving card/hub card/power supply are all integrated into a singlepower box.
The integrated power box can be removed from the front andbackfor easy installation and maintenance.

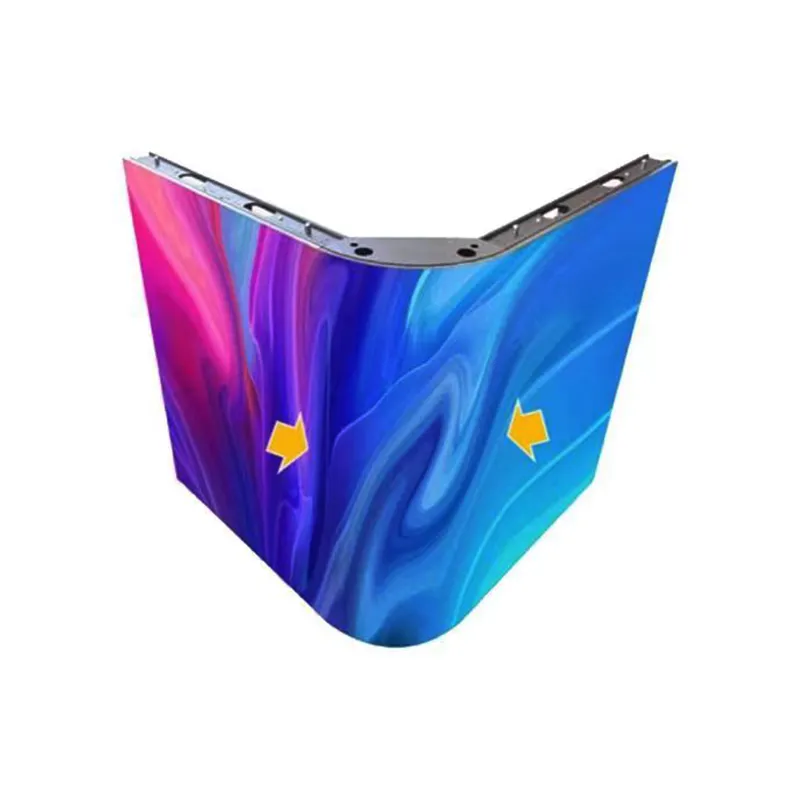

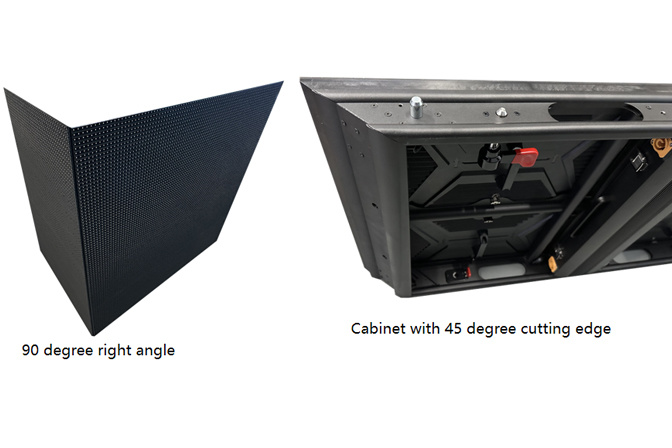

90 grados de ángulo recto
El panel est¡ndar puede cortar 45 eges del grado para hacer el anle dere.
cho de 90grados para la exhibición de la forma de L o la exhibición de laforma del pilar del squre.

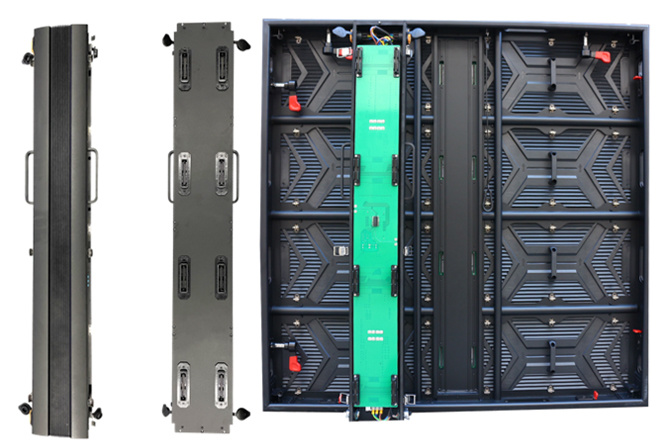

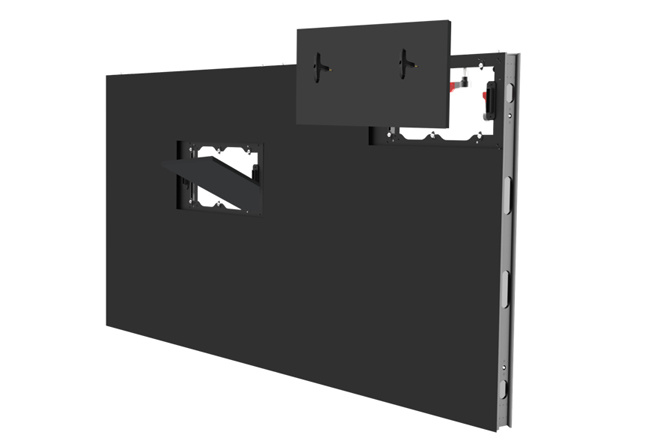

Serviceable front and rear module
The LED module is accessible from the front/rear side,
making it easier toinstall and maintain. You can change modules in seconds to save laborcosts and time.

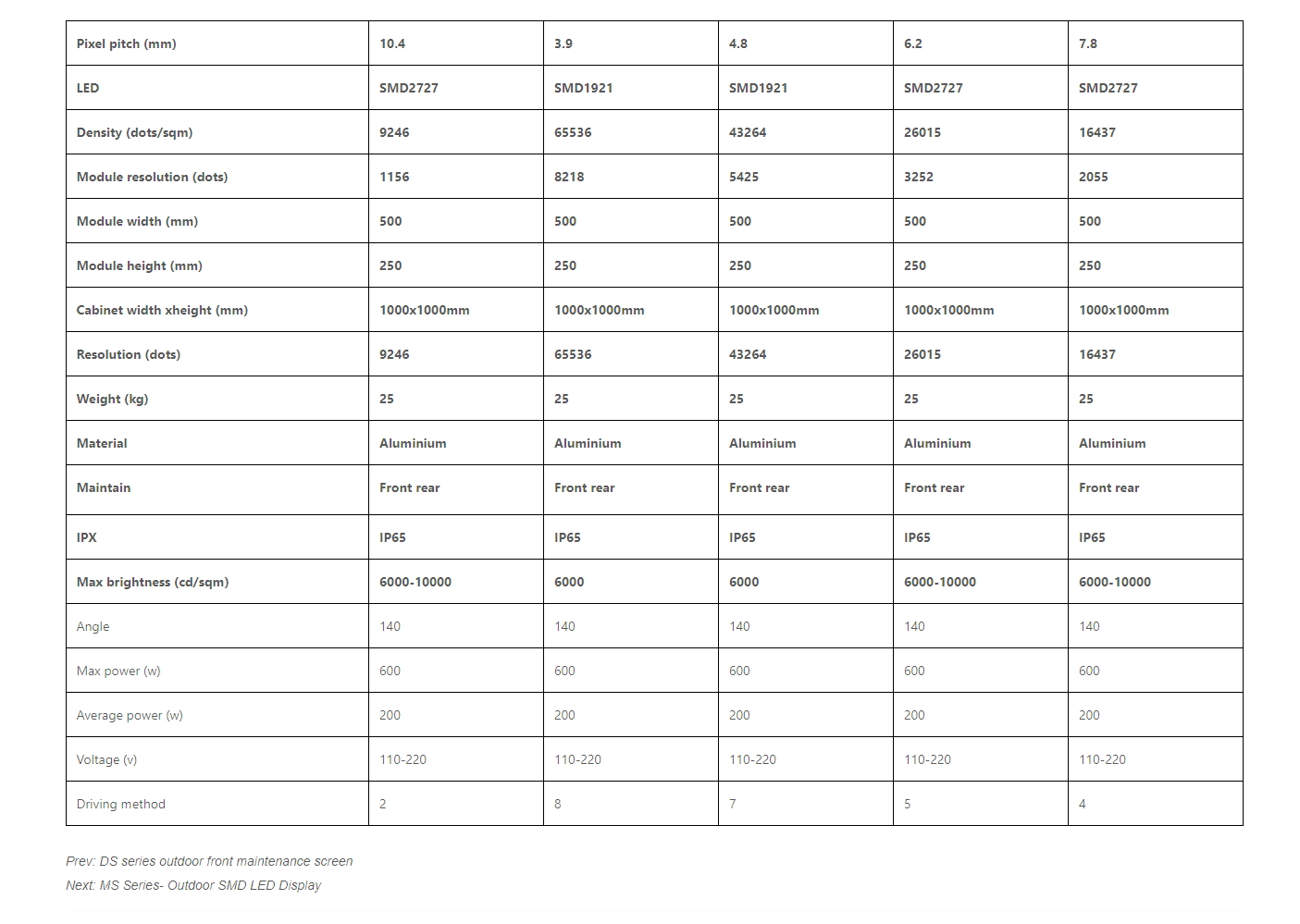

Technical Parameter
