Shenzhen Topstar Electronic Co., Ltd
D-series outdoor rental screen
Short Description:

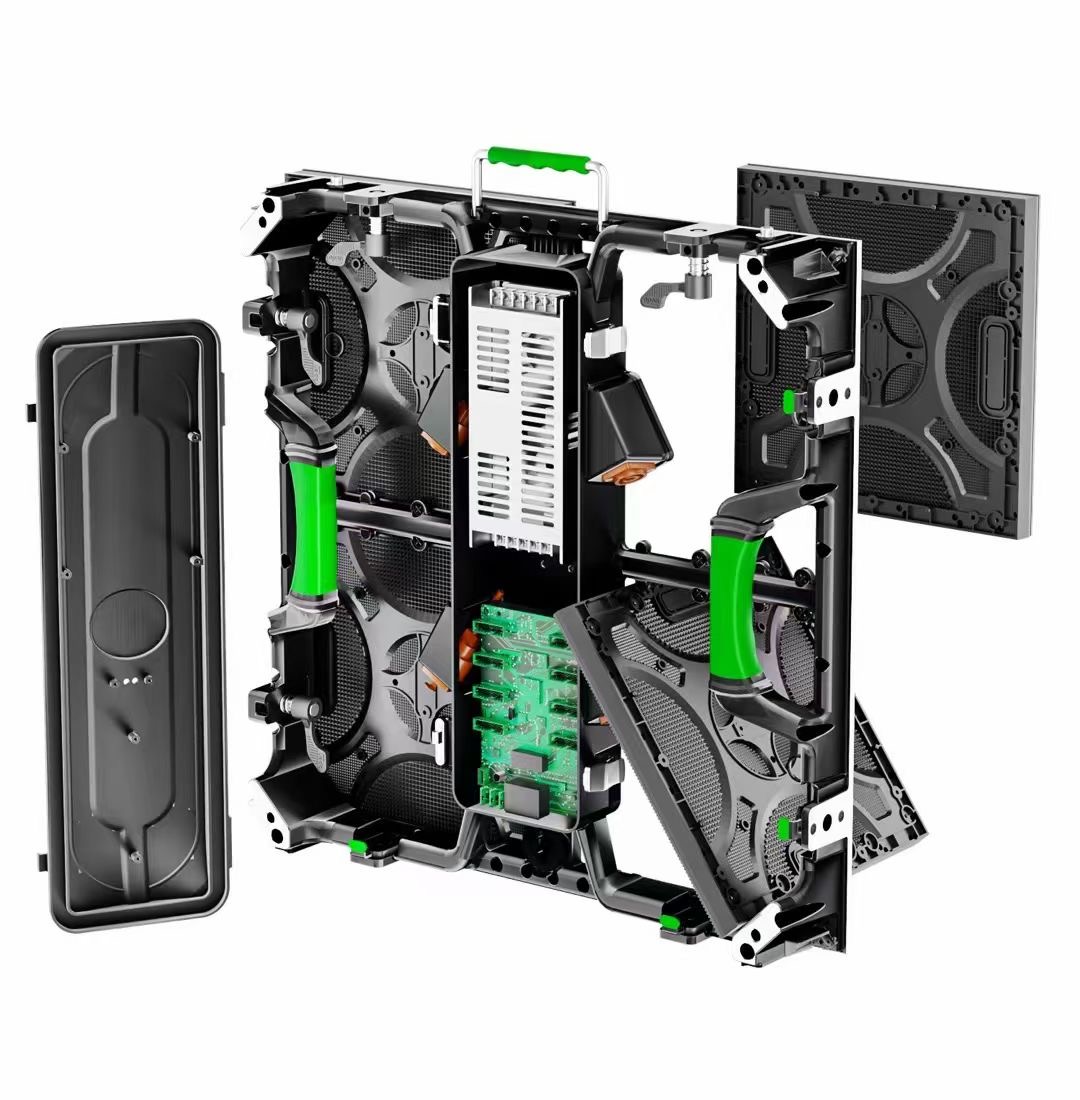

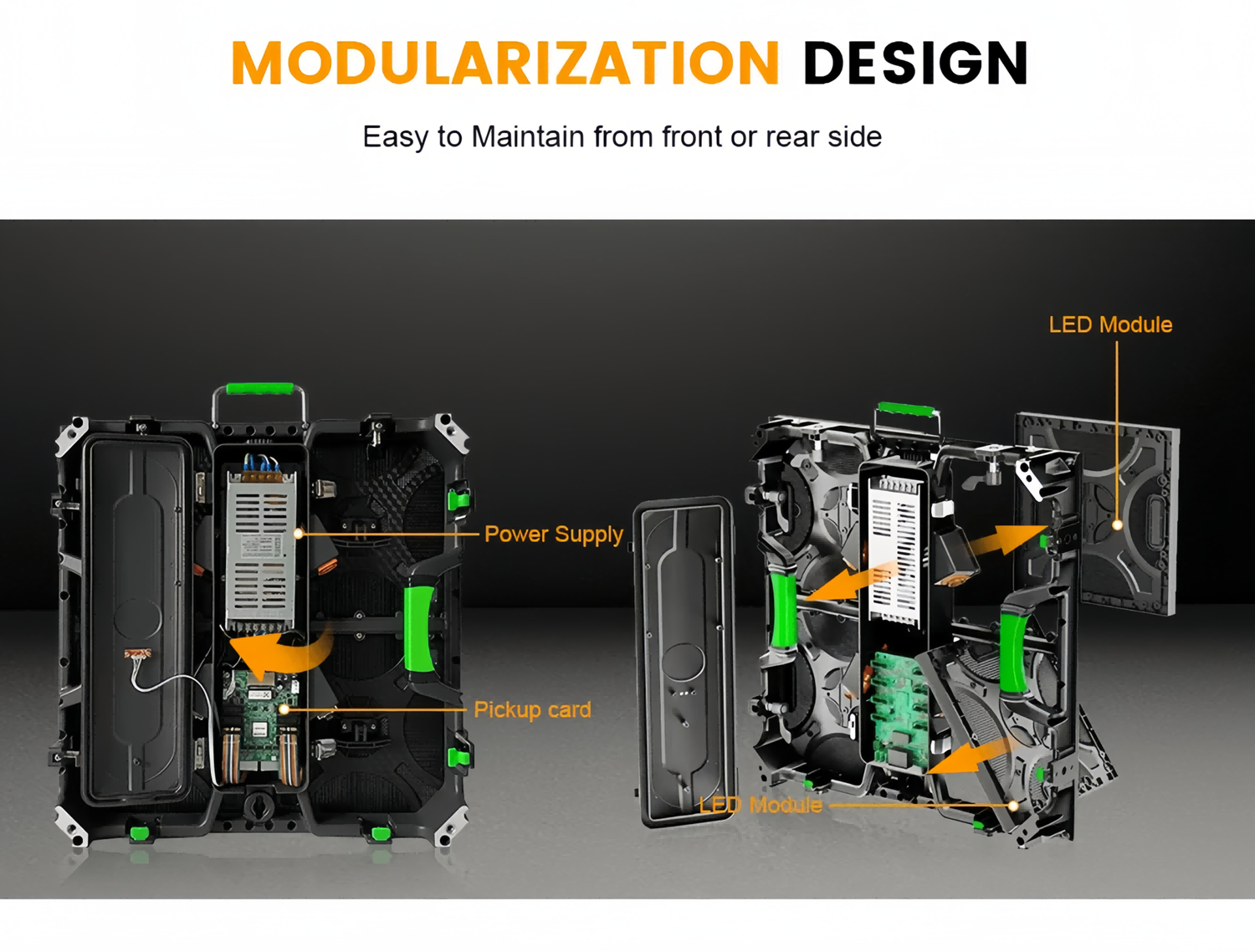

S series outdoor Rental LED Display have good heat dissipation, highbrightness, low power consumption, simple appearance and ultra-thin andultra-light cabinet. The products have different dustproof effect. Magneticmodular design is easy for installation and field maintenance. Seamlessconnection and precise modules get a smooth viewing experience. Highmodularization design is convenient to repair.
Product Specification
·Cabinet Size:500*500;500*1000

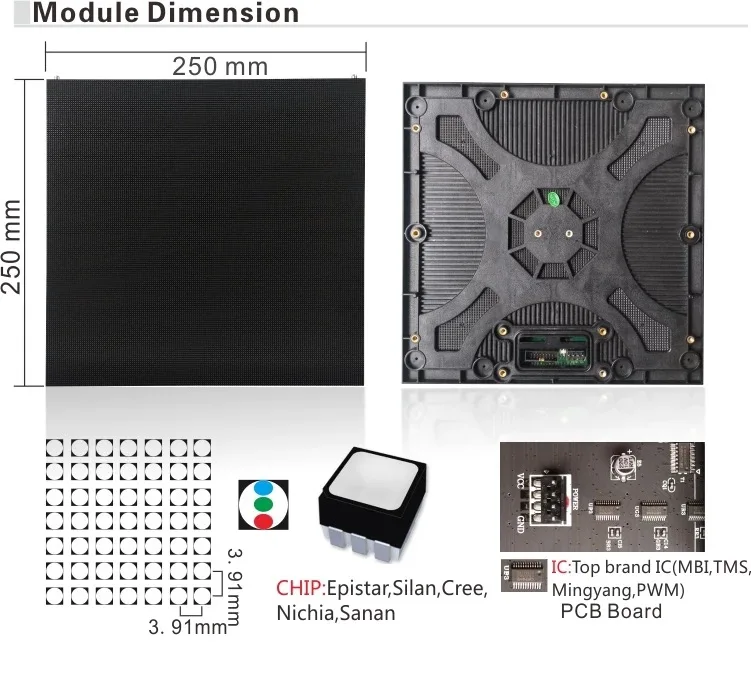

·Pixel Pitch:2.6mm;2.9mm;3.9mm; 4.8mm
·Viewing Angle(H/)：H:140口V:140
·Protection level：outdoor
·Refresh rate：≥3840
Product Details
Parameters | ||||
Pixel Pitch (mm) | P2.6 | 2.97 | P3.91 | P4.81 |
LEDs species | 1415 | 1415 | 1921 | 1921 |
pixel Density(dot/m2) | 147456 | 112896 | 65536 | 43264 |
Cabinet size (WxH) | 500mmx500mm | |||
Cabinet resolution(WxH) | 192x192 | 168x168 | 128x28 | 104x104 |
Panel Weight (kg/㎡) | 7.5 | |||
Brightness (nits) | 4000 | 4000-4500 | 4000-4500 | 4000-4500 |
Viewing Angle（H/V） | 160°/140° | |||
Protection level | outdoor | |||
Refresh rate | 3840Hz | |||
